Driver ID Module

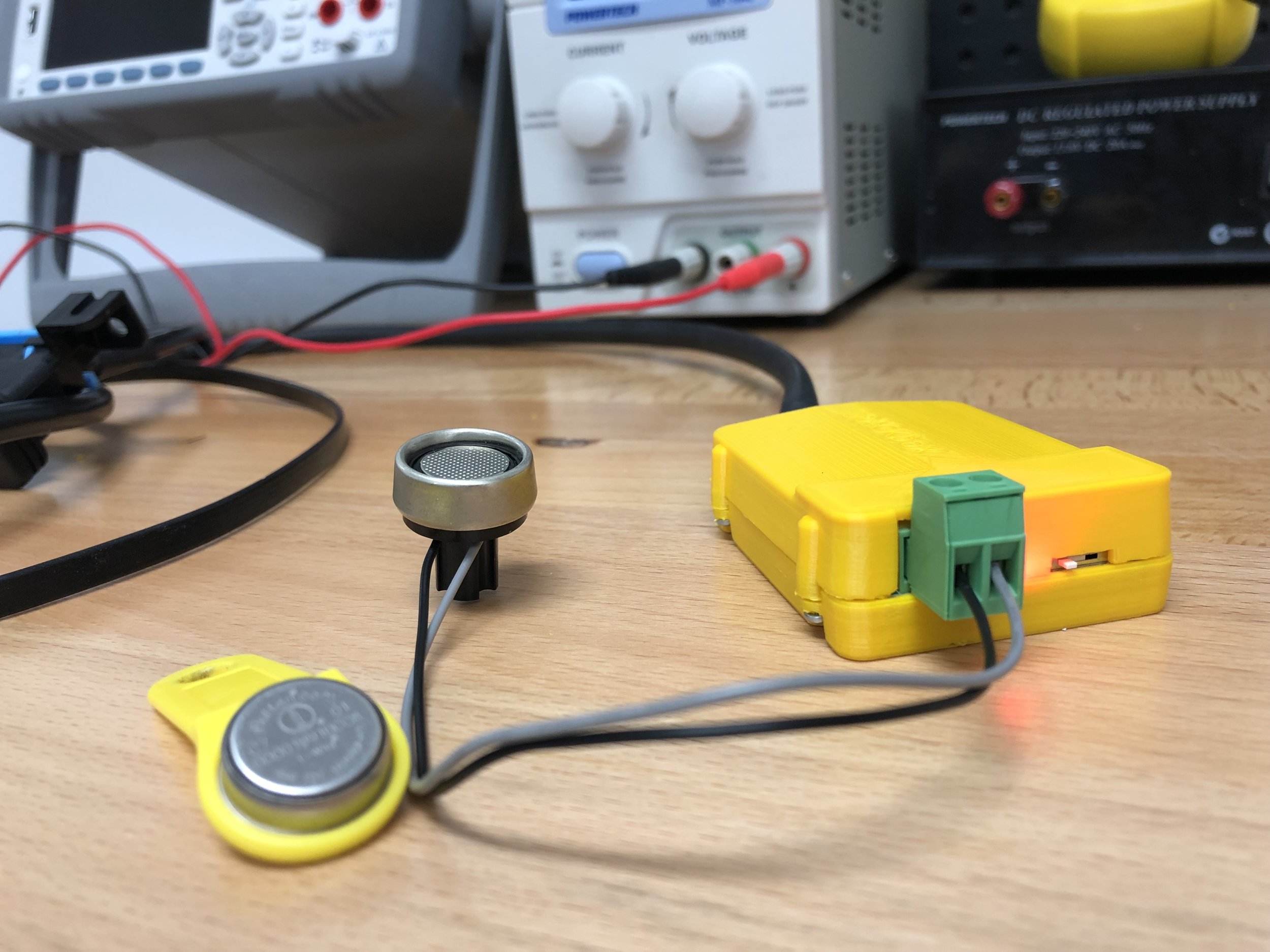

The Driver ID module provides a means of identifying the driver of a vehicle using an iButton® key.  The vehicle driver will have an iButton® key which has a unique identity (serial) number. The driver ID is read from the iButton® by touching it on the iButton® reader.

When the driver ID code has been successfully read the unit will emit the following message via the RS232 serial interface:

driverid <id>\n

Where <id> is the unique driver ID code, a 12 hex-digit number.

A host device, such as the TRACKbox TB2 tracking module, can be connected to the Driver ID module.  The TB2, for instance, can detect the driverid serial message and notify the platform of the relevant Driver ID status.  Third-party host devices might similarly wish to handle the driverid serial message.

Connections

Driver ID Module Power & IO Connections

Connection

Cable Colour

Description

Power +ve

Red

6 - 42V DC power

Ground

Black

Ground

Ignition

Yellow

Ignition sense (6 - 42V DC)

RS232 TXD

White

RS232 Transmit Line

RS232 RXD

Brown

RS232 Receive Line



DS9092 iButton® Reader Connections

Connection

Cable Colour

Description

1-Wire IO

Grey

iButton® Reader Data

Ground

Black

iButton® Reader Ground

Device State - LED/Piezo Buzzer Indication


State

Indication

Waiting for ignition

Single red flash

Ignition on, waiting for driver ID

Continual double red flash and continual buzz from piezo buzzer

Ignition on, still waiting for driver ID after 5 minutes

Continual double red flash, with short buzz from piezo buzzer every minute

Driver ID successfully detected and read

Single green flash for 5 seconds, followed by single green flash every 5 seconds
