TRACKbox TB2 CAT-M1

The TRACKbox ™ TB2 CAT-M1 is a high quality, simple to integrate, Vehicle Tracking device.

Simply connect to the vehicle OBDII port for a complete installation, or a standard
(3 wire) installation (power/earth/ignition sense) to monitor ignition on/off,
engine hours, odometer and location.

Available for use on:

  • TRACKbox® Web-Service to push your data to your own platform.

  • Vyilo - The worlds leading no-cost, no contract vehicle and asset tracking platform.

  • GPSengine White Label Platform.

Hi resolution driver behavior / TruePath data*

Garmin integration for two way messaging*

*feature not available on the TRACKbox Web Service or Vylio




Reasons to poll

  • Ignition on/off

  • PTO/Aux on/off

  • Alarm activation

  • Panic/SOS activation

  • Input voltage low

  • Internal battery low

  • TruePath Tracking


I/O configuration

  1. 1 wire (driver I.D/temperature etc) future development

  2. Vehicle lock

  3. Ignition sense

  4. Alarm sense

  5. Ground

  6. Power (6-42VDC)

  7. CANbus

  8. CANbus

  9. RS232TXD

  10. RS232RXD

  11. Aux/PTO sense or Panic/SOS

  12. Unlock or Starter disable

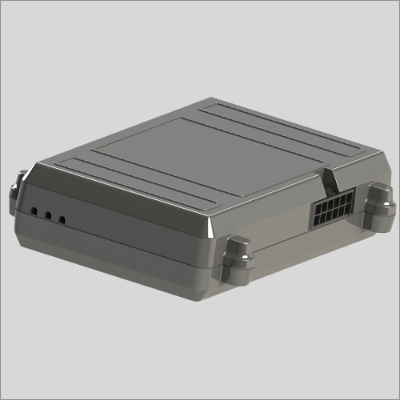

SA Image.png

security

Security:

  • Data in transit is encrypted and digitally signed.


Specifications

Network

Size

Weight

Operating Voltage

Tracking Resolution

IP Rated

GPS Antenna

Cell Antenna

Approvals

CAT-M1 (Band 28- 700mhz, Band 3- 1800 mhz)

92 x 55 x 25mm

78 grams

6-42 Volts DC

TruePath Tracking

No

Internal

External

RCM (Australia & New Zealand)
